I'm Seeing Stars
Blog Index

blog pictures

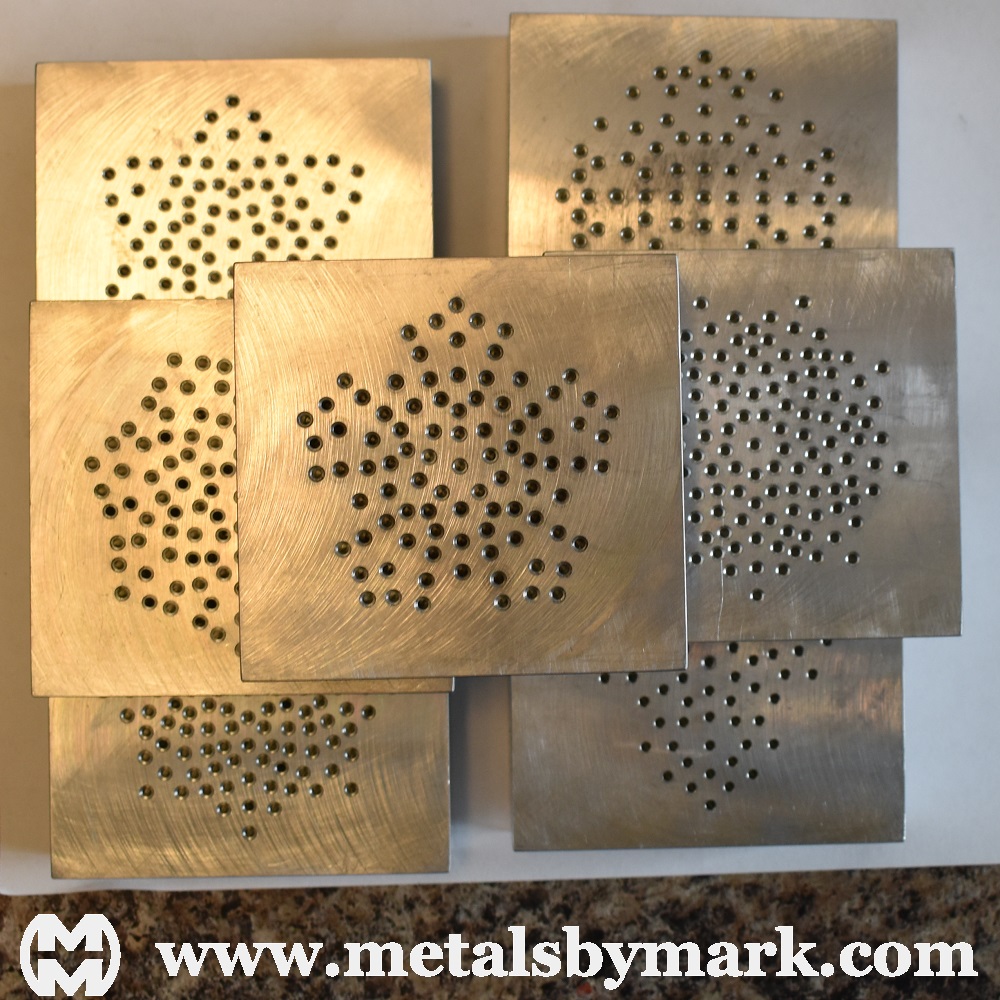

Aluminum blocks



Categories: Products; Jewelry; Projects and equipment

Word count/read time: 302 words; 1-1/2 minutes

Thankfully it's not because I smashed some body part, and amid the cursing everything went hazy and blurry as the pain threshold exceeded my limit. Because that does happen on occasion.

These are physical stars minus the 10,000,000deg temperature and some other minor details. They were designed for a dual purpose. Using common metals like aluminum or copper makes simple holiday (tree) or other decorative ornaments. Made with silver, they are great jewelry whether earrings or pendants. At a maximum size of about 2.5" they won't be gaudy or intrusive.

There are seven jigs based on three- to nine-sided figures. The extra holes allow doubling up, secondary points between the main points, or smaller shapes altogether. Trying to do the math on possible shapes? Let me know how that goes.

I made prototypes in delrin (high-tech plastic). The new aluminum blocks will last a lifetime. Stainless steel would have been stronger with a higher cost and heavier weight but it was overkill in this application.

The pins, however, are stainless steel because they must not oxidize or they won't fit into the holes. Speaking of the holes and the pins, the hole was so accurate that the pins had to be sanded to fit, and fit they do. Could have been a glutton for punishment and enlarged all 1000+ holes, I suppose.


Made with silver, they are great jewelry whether earrings or pendants.

While a manual mill could have worked, it would have been prohibitive. Besides, each hole required two drilling operations, the first acting as the pilot divot and quasi-countersink. No thanks. One specialty drill bit was $70 alone!

Programmed into a CNC machine, they were exponentially faster than anything I could have churned out. Everything is perfectly aligned and positioned no questions asked. Making these jigs removes one more item from the to-do list, which now rests at infinity minus one.


Posted by M: October 9, 2023


Please email any thoughts or comments regarding this post.
